• Quick and easy seamer adjustments
• Used for both 1st and 2nd operation seaming rolls
• Can be used for any size can (separate chuck fit required per diameter)
• Detect worn or damage chucks and rolls
• Plug and play with any Windows 10 laptop or tablet
• Portrait and landscape mode available on tablet
• Calibration piece included
Electrical Required: N/A
Output Interface: USB
Languages: available in many languages
Dimensions: Compatible with nearly all chuck/roll seamers
Resolution: 0.0002”-0.0004”

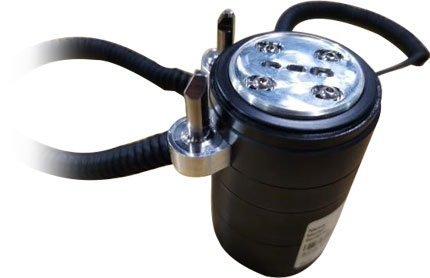

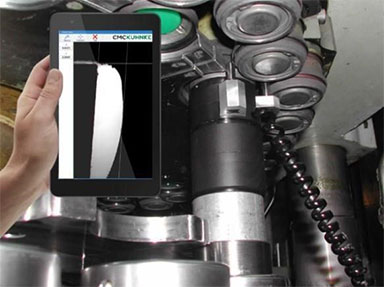

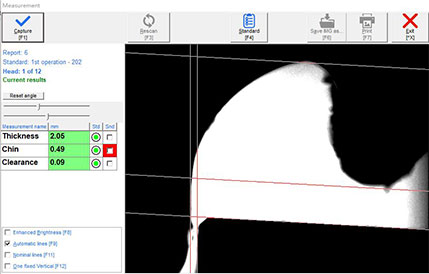

Fast, Accurate Seamer Adjustments! The SCG-2000 is an easy and accurate solution for setting up your seamer. The camera gives the user the ability to automatically measure the seamer clearance and thickness to quickly and correctly adjust the rolls. By minimizing downtime, this is especially useful for setup during changeovers and for daily use to make adjustments as the seamer warms up. The seamer setup gauge helps to determine which roll needs to be adjusted should a seam problem come up. The SCG-2000 is suitable for food & beverage fillers of all sizes. The gauge comes with all the software needed for measurement and connects directly to any PC/Windows tablet via USB.
The Semi-Automatic Combination Seam Gauge provides automated seam thickness and countersink depth measurements, including the option of a 360° scan of seam thickness.
The new 3rd Generation XTS is a stand-alone measurement system that provides non-destructive, double seam inspection for round cans (aluminum or steel).
The Dome Reversal Tester is a semi-automated buckle tester designed to determine the pressure at which the bottom dome of a finished beverage can begins to buckle.
