• Complete 360° Seam Thickness Profile (CSG-3000-B)
• Fully-Automatic Version Available
• For Food or Beverage Cans
Maximum Size: Can Body Diameter: from Ø52 (200) to Ø73 (300)
Can Height: 55 to 240 mm (2.125 to 9.4 in)
(Models available for all Food and Beverage Diameters and Heights)
Max Positions: 1000 readings/second (in 360 mode) or 50 points around the can (can rotated automatically)
Electrical Required: 100-240VAC 50-60Hz
Air Pressure Required: min. 72.5 psi (5 bar)
Measurement Units: Inch, mm
Output Interface: RS 232 (110…38400 Baud configurable), USB 2.0
Languages: available in many languages
Dimensions: 18.5 in (470 mm) x 12.6 in (320 mm) x 11 in (280 mm)
Resolution: Countersink: 0.001 mm (0.00004 in)
Seam Thickness: 0,0001 mm (0,1 micron) (0.0000004 in)
Accuracy: Countersink: +/- 0,01 mm
Seam Thickness: +/- 0,001 mm

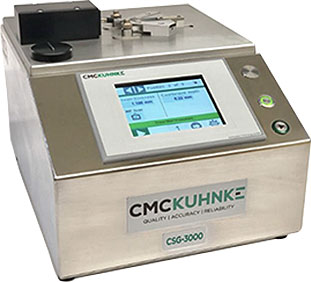

The Semi-Automatic Combination Seam Gauge provides automated seam thickness and countersink depth measurements, including the option of a 360° scan of seam thickness.
Measures: • Seam thickness • Countersink depth
Benefits
• Saves Time:
o Automatic Can Rotation
o Multiple Measurements at one time
o Automatic Data Transfer
• Increased Accuracy:
o Automated Measurement
o World Class R&R
• No Change Parts Required
