• Lid Centralized storage in piles and fed pile by pile
• Five storage file position, with load capacity 1200 lid
• Triple lid separator design with servo motor to make lid separation stable and reliable
• minimized contact surface with the belt and operators.
• Maximum safety for operating staff
• Tailor design storage position as customers need
• Lid UV sterilization （optional）
Machine dimensions: 4100mm×1500mm×2100mm
Can-ends: Tin can end Dia70mm-170mm
Can-ends per hour: max. 12000
Compressed air: 6 bar (g)
Compressed air consumption: 150 NI/min.
E-Power connection: 380V; 3 phase; 50 Hz and Earth
Total connected power: 1.1kW
Net weight approx.: 300 KG
Range of voltage: 380 V ±15%
Noise level: Less than 80 Db

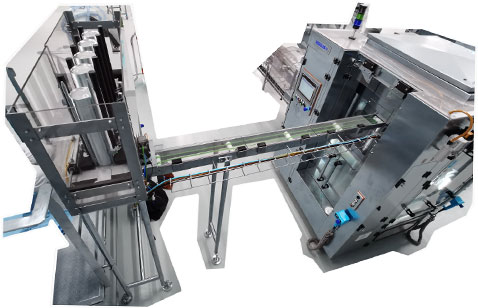

TYL-B-100 machine is developed for Tin can lid seamer, which handles the lids with diameter from 70mm-170mm.
TYL300 feeds can end with a maximum capacity of un-wrapping 6 rolls per minute, allowing a guaranteed capacity of 120,000 ends per hour, based on a double discharge and double infeed to the downstream seamer or two different seamers.
TYL200 is ideal for feeding lids, as well as round nesting, square, rectangular or oval lids. TYL200 can hold a large inventory of can lids or ends, while feeding them, on demand, to one or multiple production lines. Built for ease of operation and maintenance, it will streamline any filling or can making operation.
